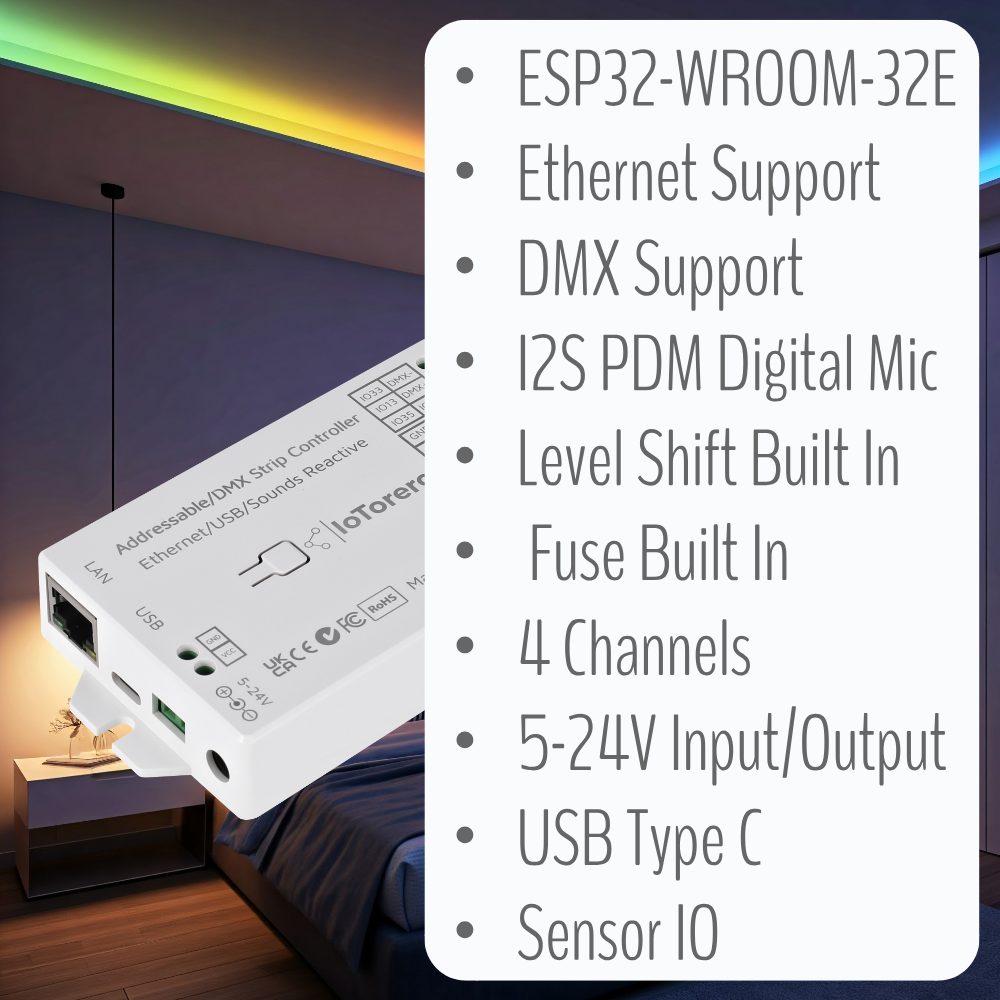

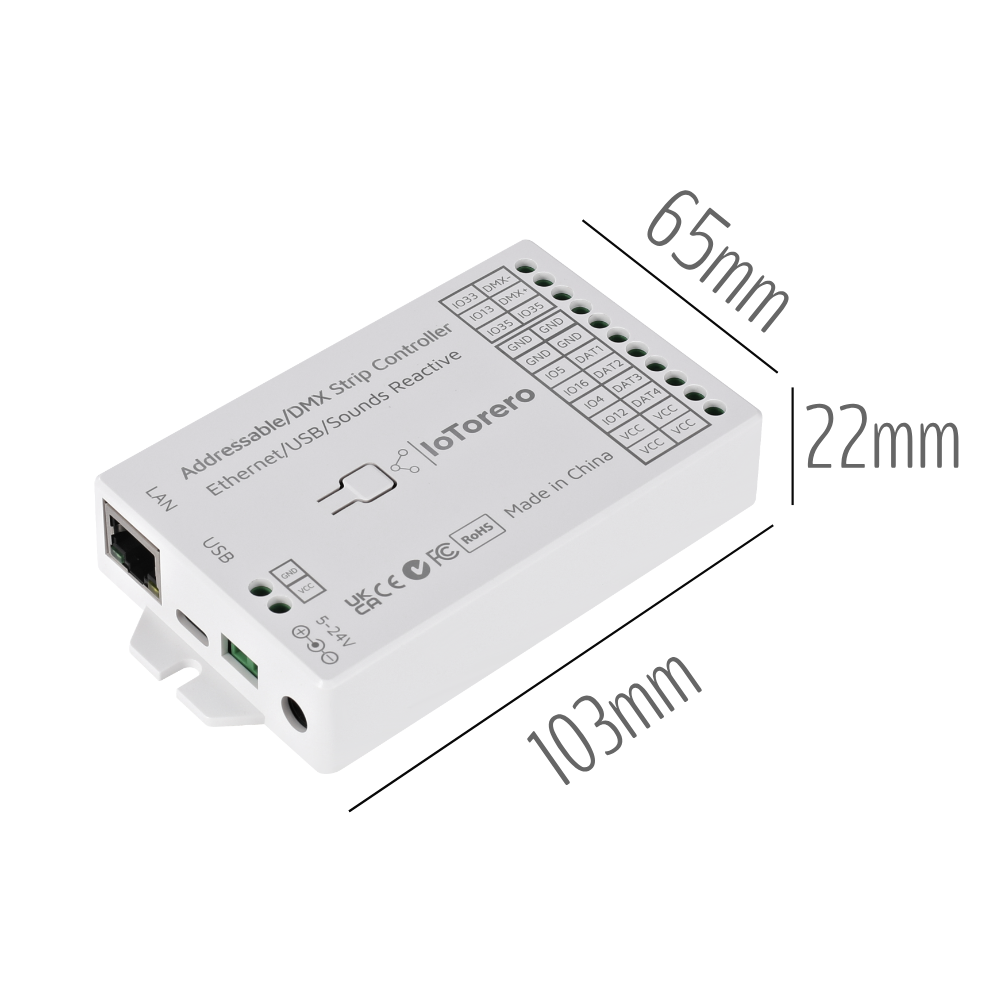

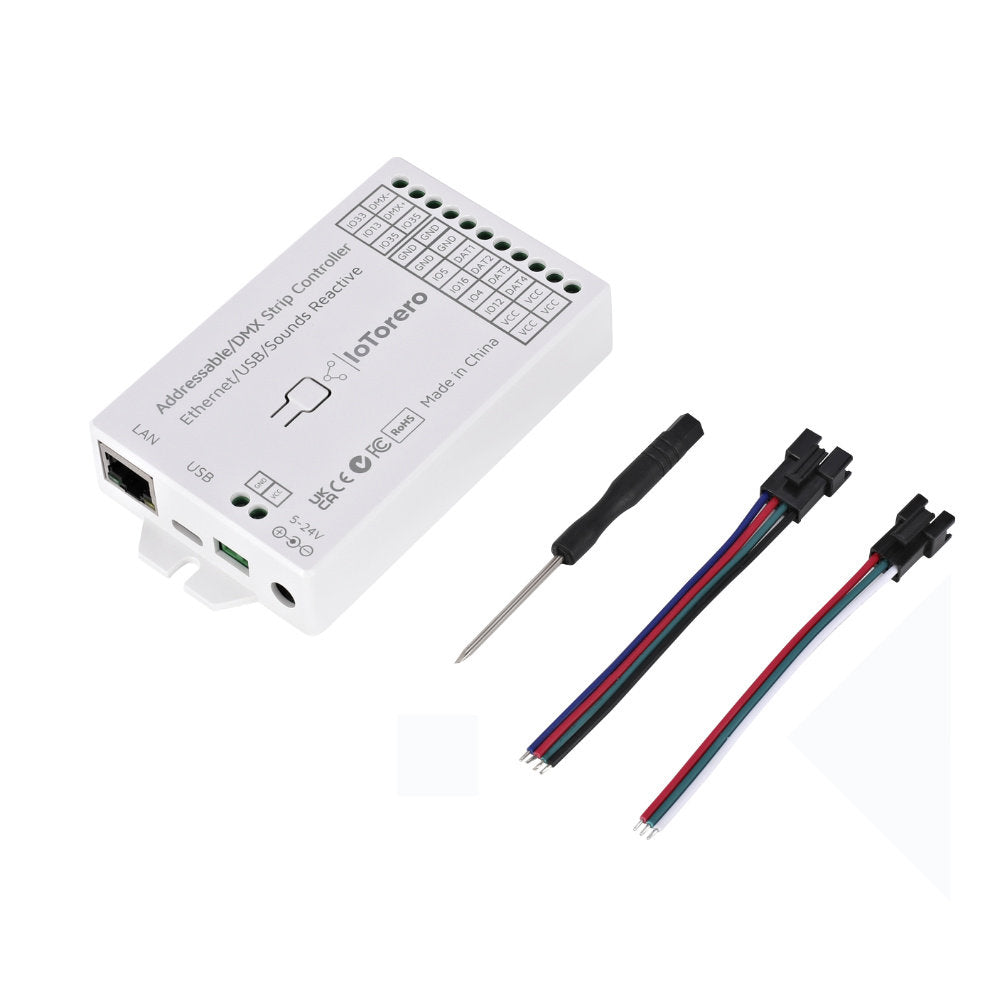

ESP32 -WROOM-32E Chipset
I2S PDM Digital Microphone Built in
Level Shift built In
USB to Uart built in
16A Relay built In
Replaceable Fuse
Max485 built in
Input: 5V-24V
MaxLoad: 16 A
4 Channels DAT
DMX output
Ethernet:
Microchip LAN8720A 10/100Mbps Chipset
Support Ethernet connection to improve network stability and transmission speed
USB Type C:
Provide 5V input
USB to Uart chipset Built in
Flash firmware through USB directly
Sounds Reactive
Built-in high-sensitivity I2S PDM digital microphone enables dynamic music-reactive lighting effects. Synchronize your addressable LED strips with audio for an immersive lighting experience.
16A Relay Built In
Built-in 16A relay for complete power disconnection in standby mode, ensuring enhanced safety and energy efficiency
Built-in replaceable fuse
Reserved input and output port (GPIO35) can be used to connect sensors or switches
Strip types support: WS2812B WS2811 WS2813 WS2805 WS2815 SK6812 TM1814 APA102 WS2801 LDP8806 GS8208

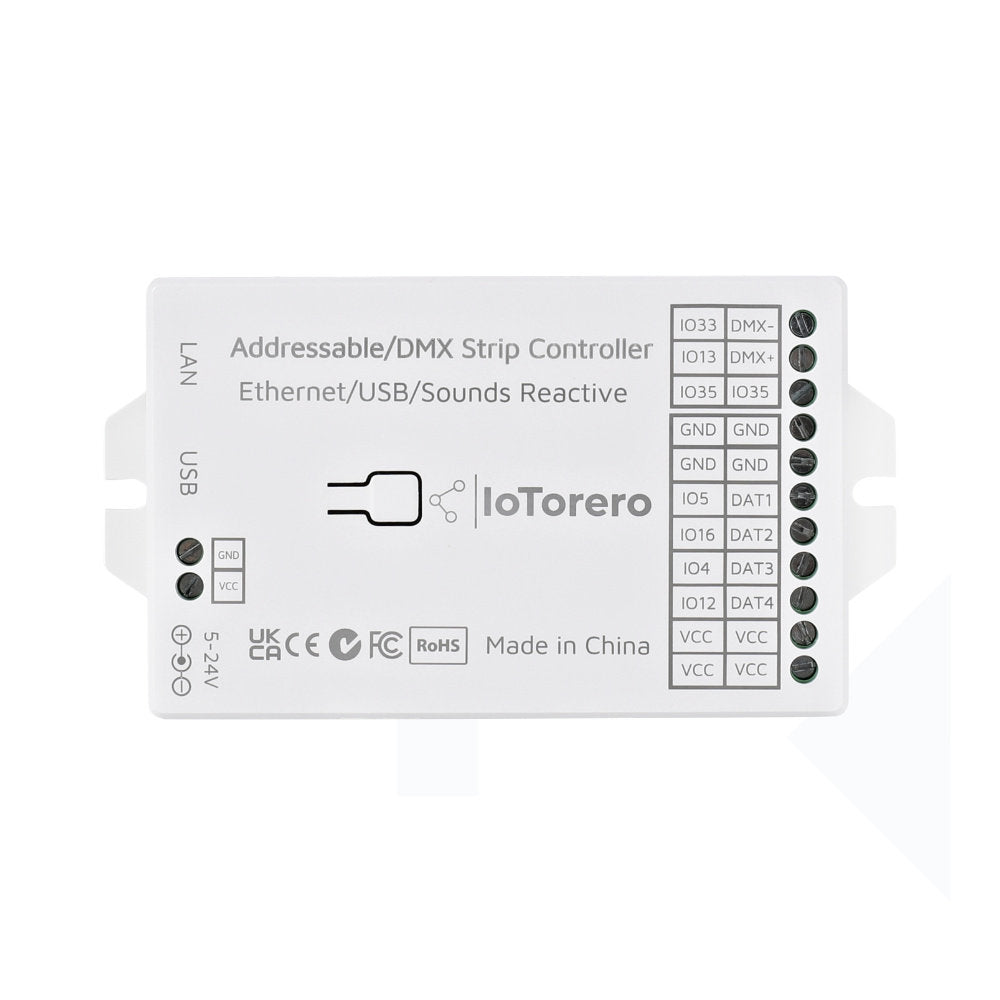

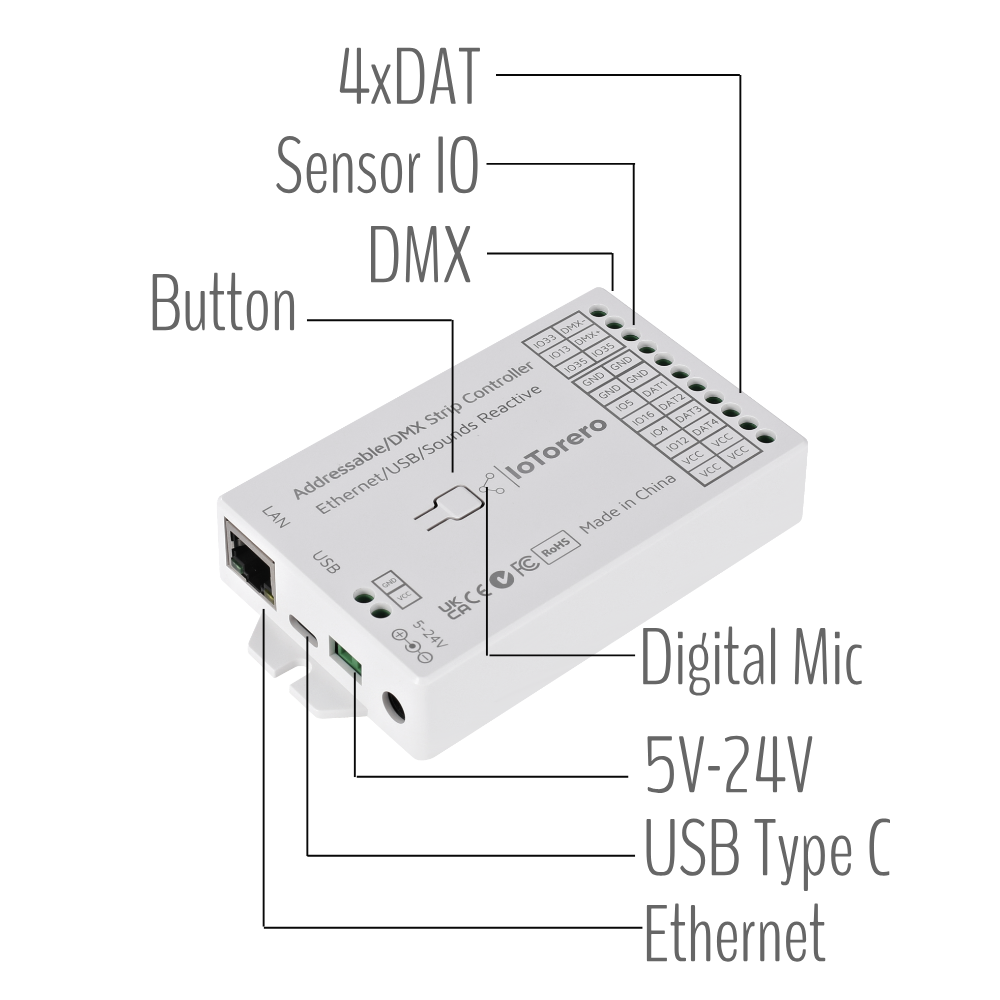

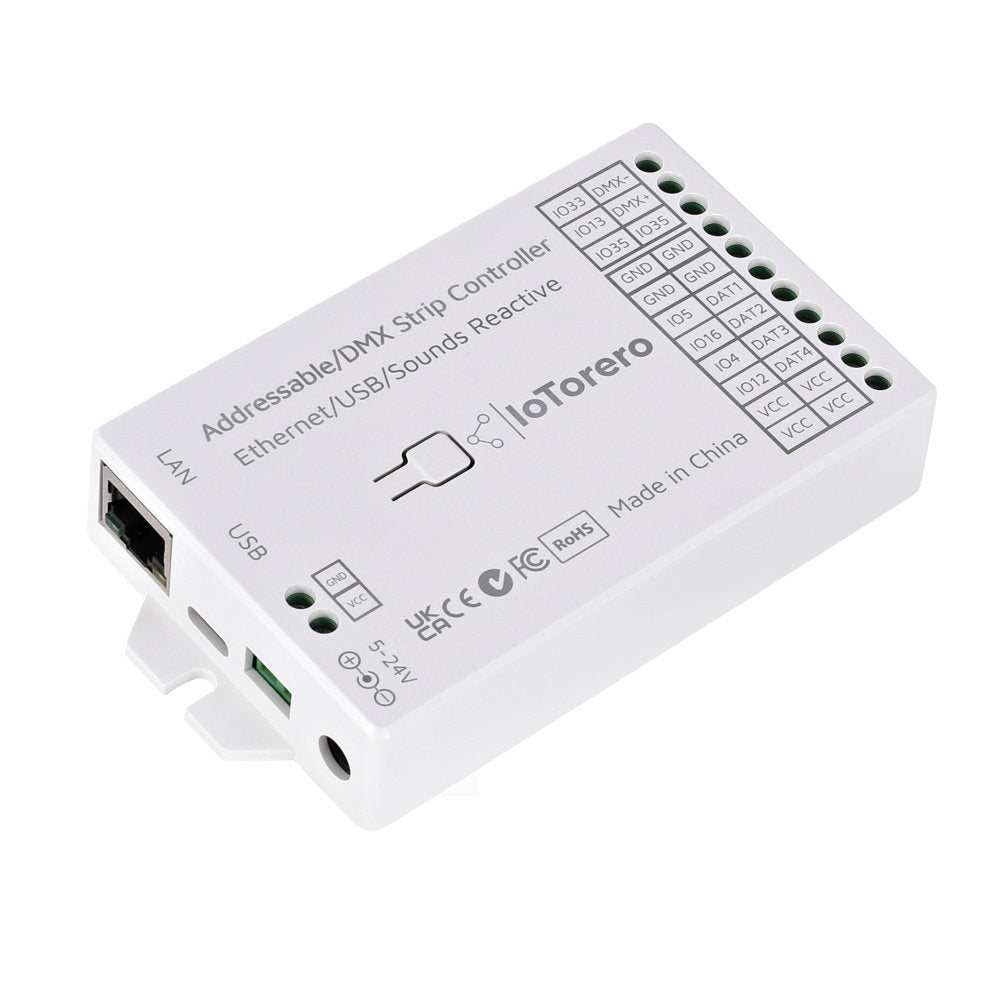

GPIO:
- Button（GPIO0）
- Relay（GPIO2）
- DAT1（GPIO5）
- DAT2（GPIO16）
- DAT3（GPIO4）
- DAT4（GPIO12）
- DMX+（GPIO13）
- DMX-（GPIO33）
- I2S_SDPIN（GPIO32 ）
- I2S_WSPIN（GPIO15 ）
- I2S_CKPIN（-1）
Notice: If you want to upgrade the firmware, please use "WLED_0.x.x_ESP32.bin"
The first rule of upgrading: If it ain't broke, don't fix it!
In other words, ensure that there is a good reason to mess with a working installation (e.g., a need to use a new feature or address a found problem fixed in the current version).
Custom version firmware

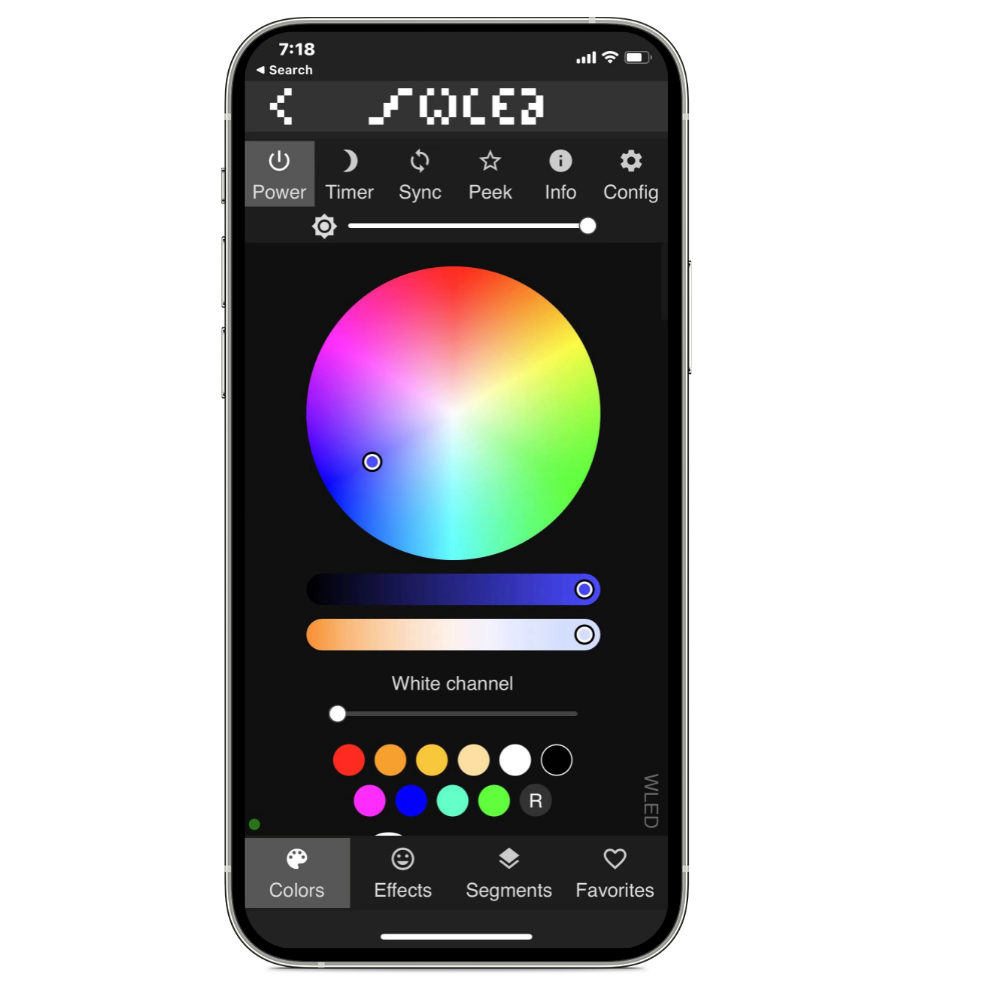

The device WLED firmware uses DAT1 (GPIO5) as the DATA of the WS281X type light strip by default. If you have other types of light strips, please set it on the setting page according to your actual situation
