480 LED/m (FCOB) - PWM (Analog) 1-Ch (W) 3000K - White FCB

Product Overview

FCOB COB LED Strip – Warm White 3000K, High CRI, (Analog/PWM)

This flexible LED strip features advanced Flip Chip On Board (FCOB) technology, providing exceptionally smooth, spotless illumination. With a high CRI of 90+ and dense chip placement, it offers professional-grade lighting performance ideal for both residential and commercial installations.

Key Features

The strip delivers ultra-bright and uniform light output, outperforming traditional 5050 and 3528 SMD LED strips by eliminating visible dark spots and producing a clean, continuous glow. The warm white tone creates a welcoming ambiance with accurate color rendering.

It is compatible with a wide range of dimming systems and control protocols, including ELV, TRIAC, DMX, DALI, 0–10V, and RF. Supported controllers include models such as C01RF+RC01RFB, RF 14Keys, WB5, LM052, LM053, SP630E+RB1, and SP530E (controller sold separately).

Engineered for reliability, the LED strip is built on a double-layer copper PCB that enhances both heat dissipation and electrical conductivity, ensuring long-term durability with a rated lifespan of over 65,000 hours.

The flexible construction allows for easy shaping and positioning. It is cuttable at designated solder points and includes 5.5mm x 2.1mm male and female DC connectors at both ends for simple plug-and-play linking. At 8mm wide, it fits seamlessly into tight spaces or channel mounts.

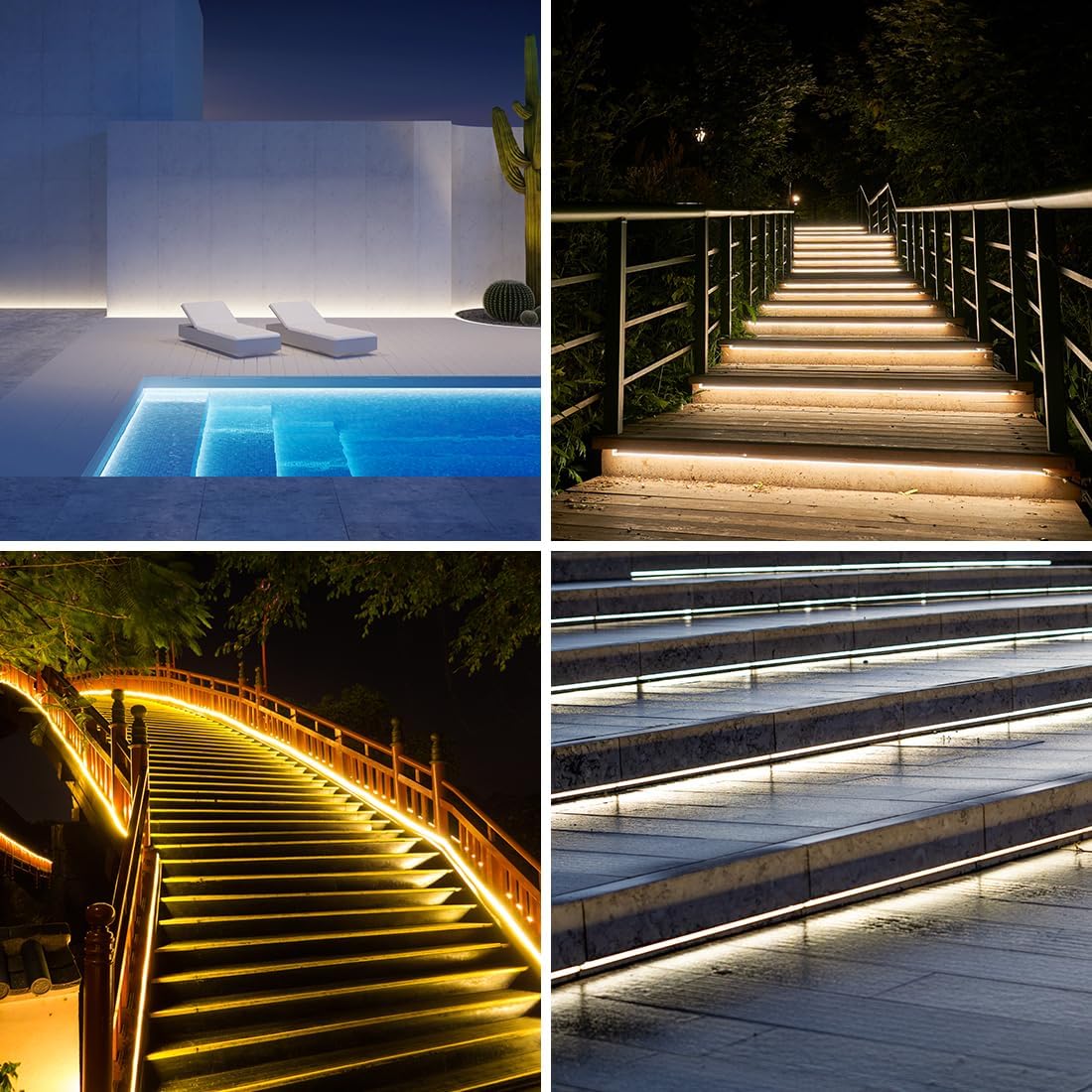

Ideal for interior design and accent lighting, this strip is suited for use in living rooms, bedrooms, kitchens, staircases, mirrors, cabinetry, and a wide variety of custom or architectural lighting projects. The back features high-strength adhesive for secure mounting. For best results, ensure the installation surface is clean and dry prior to application.

FCOB stands for Flip-Chip on Board in the context of LED light strips.

Here’s a quick breakdown of what that means:

• Flip-Chip: This refers to a type of LED where the chip is mounted upside-down directly onto the substrate without traditional wire bonding. This allows for better heat dissipation and a more compact, efficient design.

• On Board: This means the LEDs are mounted directly onto the flexible PCB (printed circuit board) of the strip.

Why FCOB LED Strips Matter:

• Seamless light: FCOB strips typically have a continuous phosphor coating that diffuses the light very evenly, producing a dotless, uniform glow—much smoother than traditional SMD LED strips.

• Better flexibility: The design allows for more bending without damaging the strip.

• Higher efficiency & durability: Flip-chip designs reduce heat and improve performance.

FCOB LED strips are popular in applications where aesthetics matter—like architectural lighting, signage, and under-cabinet lighting.

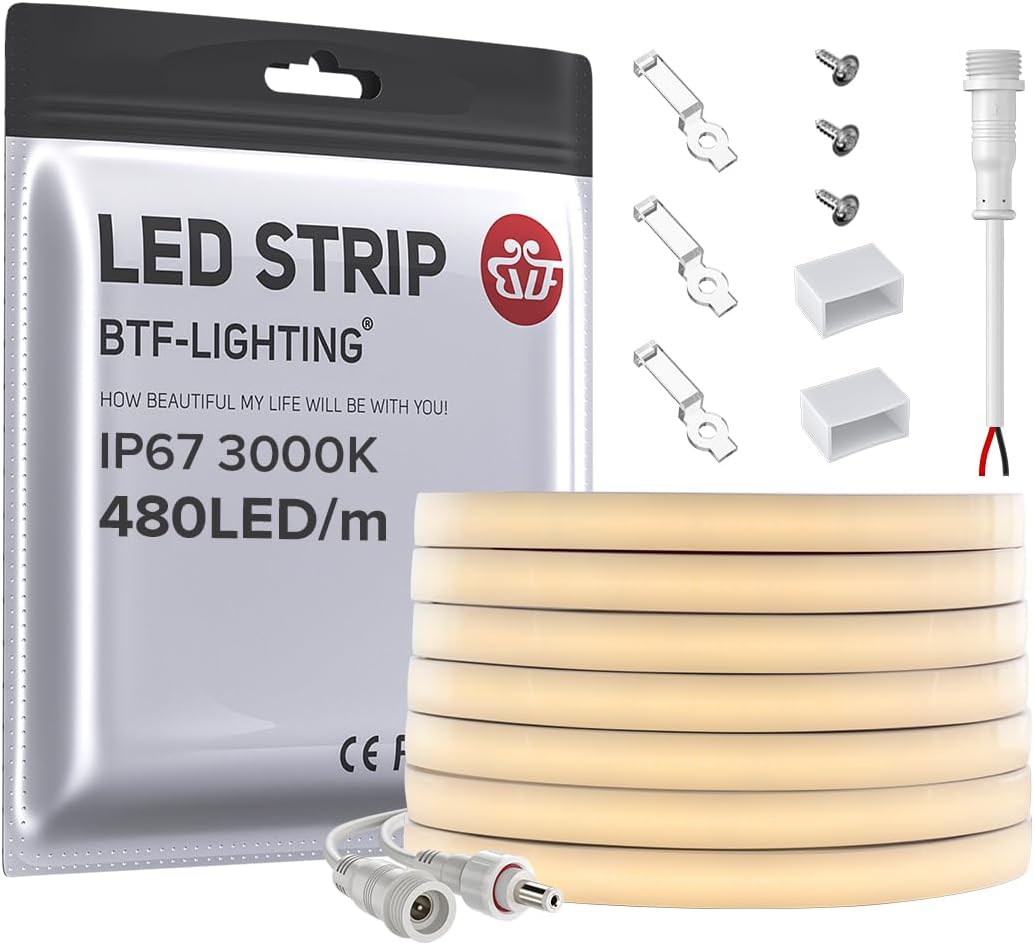

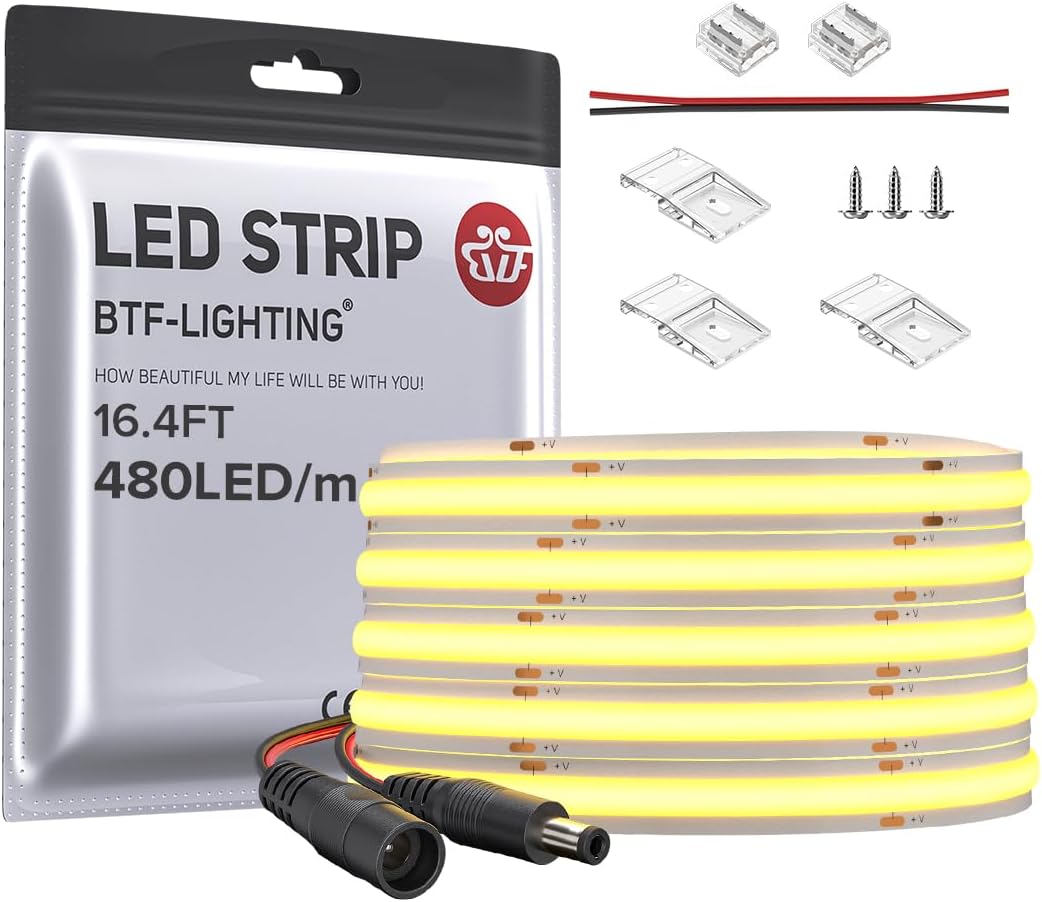

What’s Included

1 × FCOB COB LED Strip (Warm White)
2 × Non-Wired Gapless Solderless Connectors
3 × Mounting Clips
1 × 20AWG Extension Wire
1 × User Manual

Power supply and controller not included.
